CyberArk P-Cloud (CyberArk Privilege Cloud) Identity Deployment

congcong • 2天前 • 好物分享

This post summarizs the steps to deploy your P-Cloud.

Privilege Cloud Interface

Once you subscribed P-Cloud, you will get an activation email to activate your account.

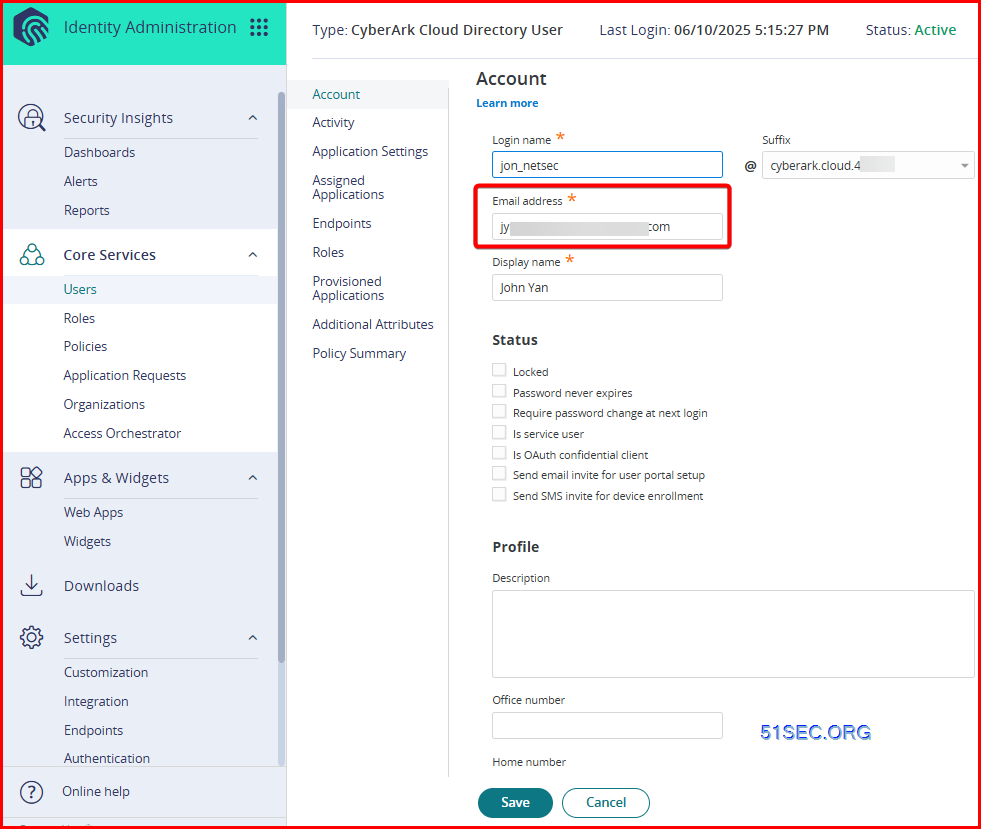

Your account will looks like cludadminjnetsec@

cyberark.cloud.1234

Your email will be used as MFA to authenticate your access to your p-cloud environment.

P-cloud url : https://<company name>.

cyberark.cloud

After logged in, it will look like this:

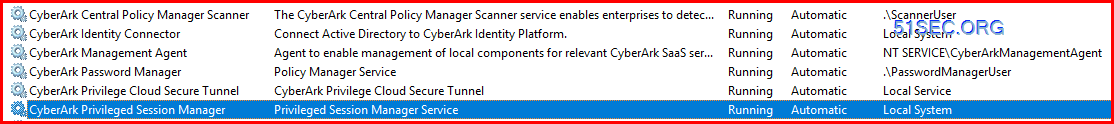

Connector Server

1 CyberArk Identity Connector Service

Creates a secure Websocket Tunnel between the Identity tenant and the on premise LDAPS system

LDAPS , Radius

2 CyberArk Password Manager

All password management and rotation capabilities

3 CyberArk Privileged Session Manager

4 CyberArk Privilege Cloud Secure tunnel Service

SIEM and HTML5 Gateway integration

5 Install Identity Connector

6 From Connector Management, generate script to install Connector Management Agent

Once you successfully run the script, you will be able to deploy CPM and PSM through Connector Management agent to connector servers.

7 Applying the hardening GPO

Local security policies are configured during installation.

One unified domain GPO (for CPM and PSM) must be applied at domain level.

8 Enabling MFA

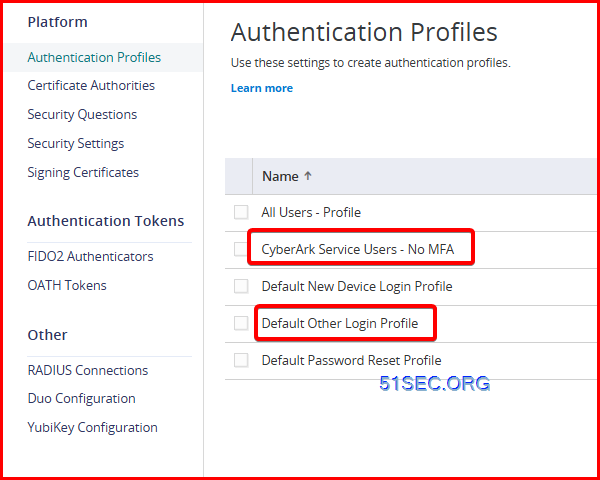

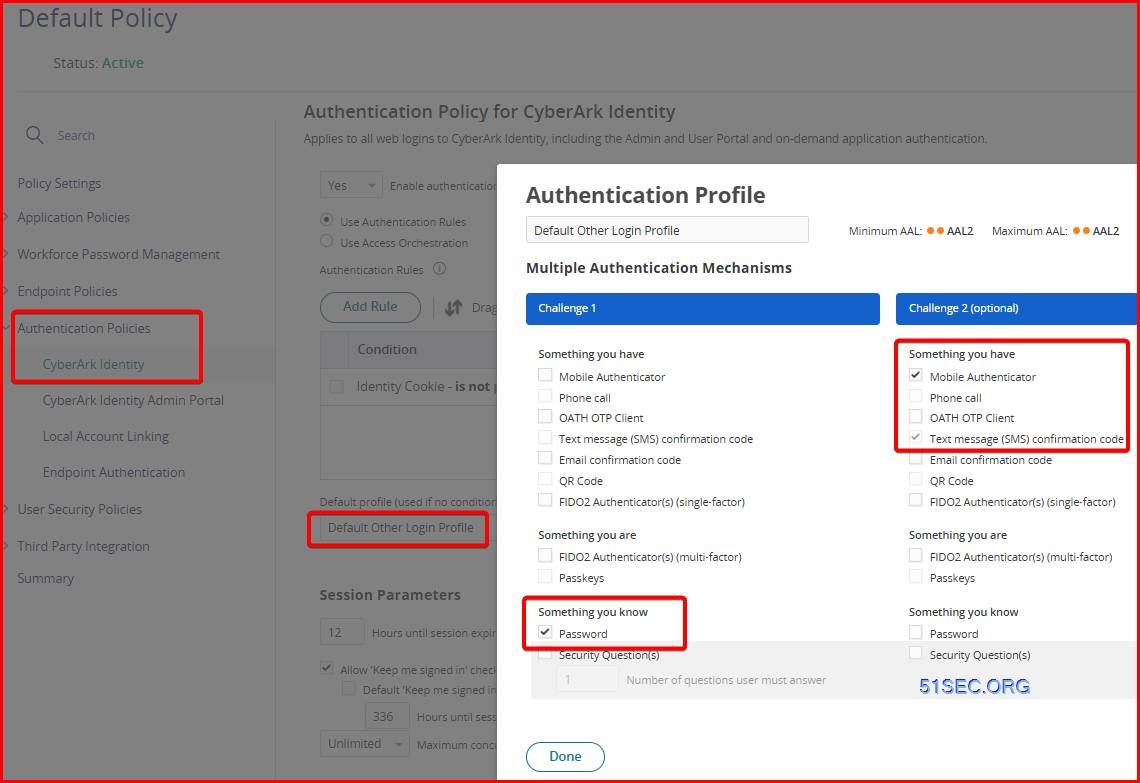

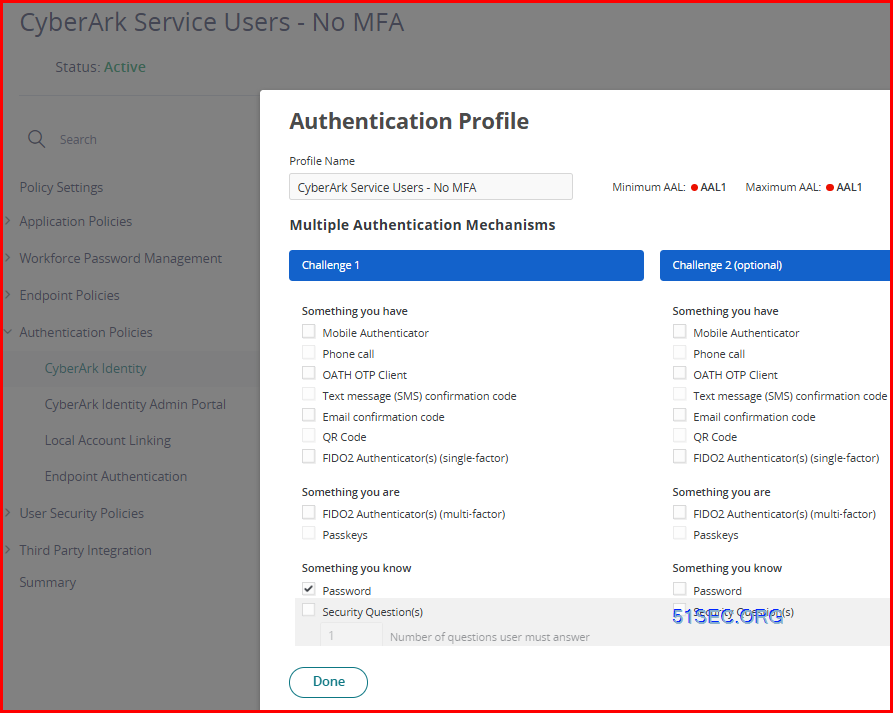

a. Authentication Profile

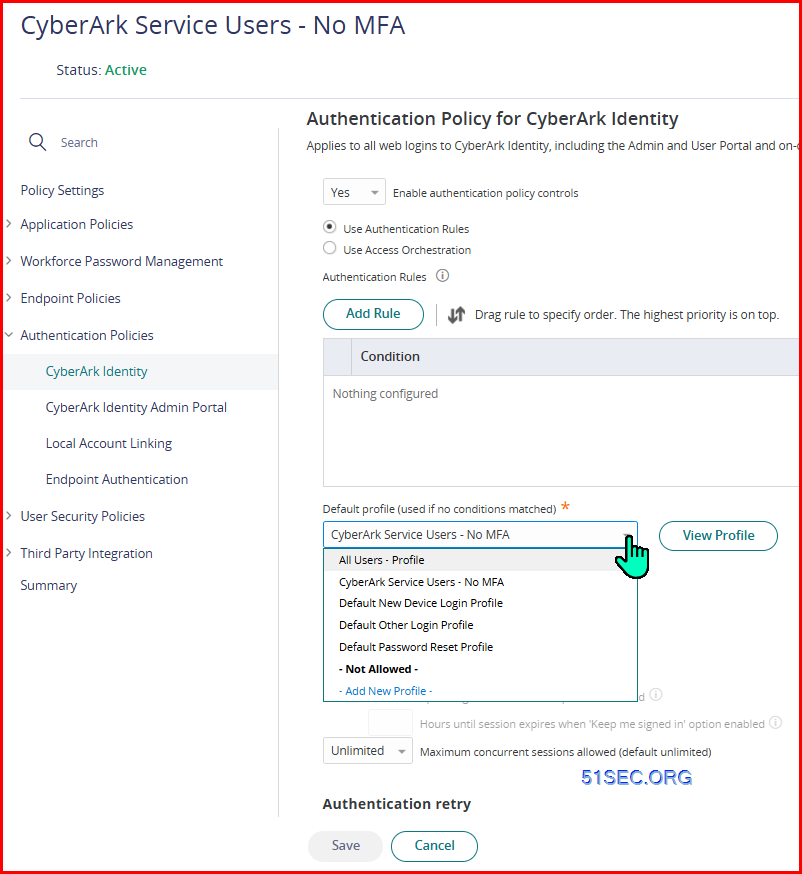

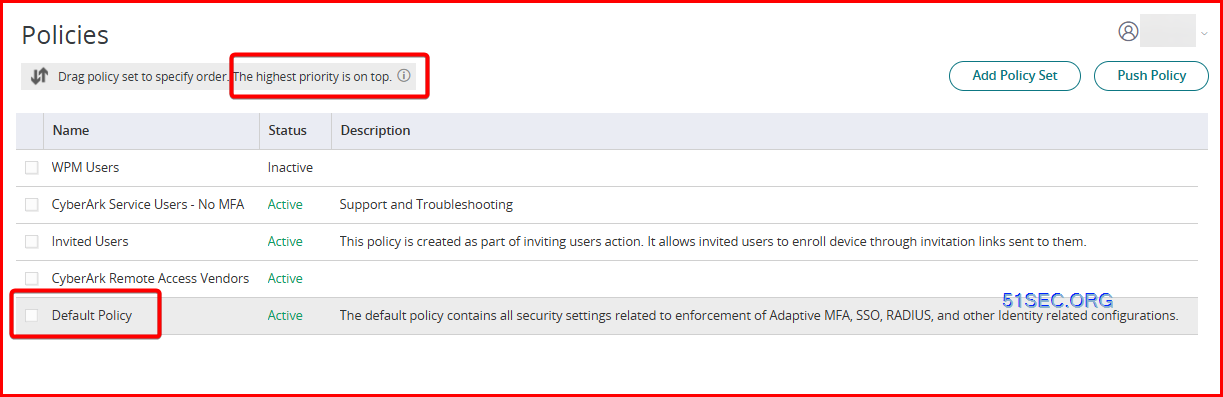

b. MFA policy

The Vault and Its Clients

Pre-implementation

1 Server Sizing

Separate CPM and PSM if needed

PSM and CPM will have different size requirements

PSM (1-10, 11-50, 51-100) sessions
CPM (<1000, 1000-20000,20000-100000, 100000+ ) managed passwords

2 Minimum Server requirements

8 Cores, 8GB RAM
Windows Server 2016 or 2019
Domain Joined (for full PSM features)
All connector servers need to be deployed into an OU that has GPO inheritance disabled

3 Design Consideration for Architecture

Components : PSM, CPM, Identity Connector (2 for resilience ), Secure Tunnel (2)
PSM best practice for HA
CPM Active /DR best practice
AAM - separate VM
PSM for Unix - Separate

4 LDAP Requiremetns

Domain Joined
LDAPS
Read permissions on the deleted objects container

Domain admin
Delegate read permissions to a service account
https://
docs.cyberark.com

/Product-Doc/OnlineHelp/Idaptive/Latest/en/Content/CoreServices/Connector/Add-AD.htm?tocpath=Setup%7CAdd%20Users%7CAdd%20users%20from%20an%20external%20directory%20service%7C_____1#Userandpermissionrequirements

5 RDS

RDS license server
RDS Cal on your connector server

Windows 2019 Per-User CAL if Connector Server OS is 2019
Per-device CAL

RDS should not be installed prior to the implementation

6 Firewall

7 Verify Prerequisites

- Troubleshooting flag

script to validate required network traffic and local settings: https://
cyberark-customers.force.com

/s/article/Privilege-Cloud-How-to-run-the-PSMCheck
Privilege Cloud Checklist: https://
cyberark-customers.force.com

/s/article/Privilege-Cloud-Remote-Access-PreImplementation-Checklist
Remtoe Access for Privilege Cloud: https://
cyberark-customers.force.com

/s/article/Privilege-Cloud-PreImplementation-Checklist

Identity Connector Installation

CyberArk Identity Connector

installeruser

reset passowrd. and password will expire 24 hours

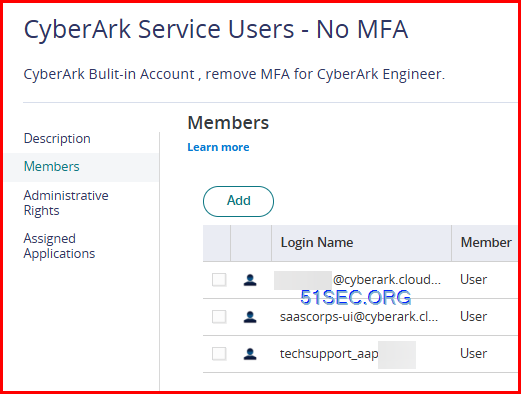

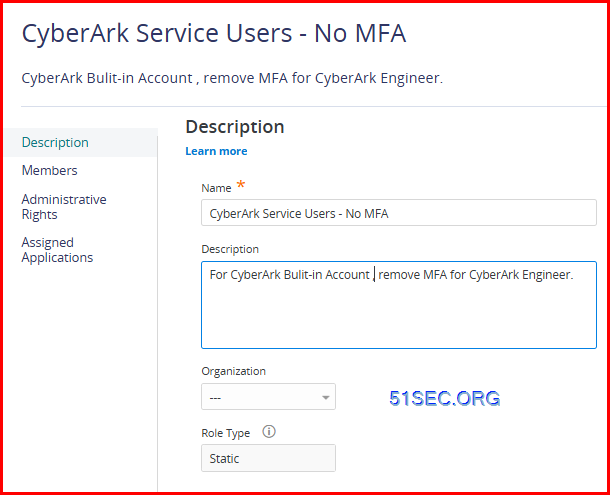

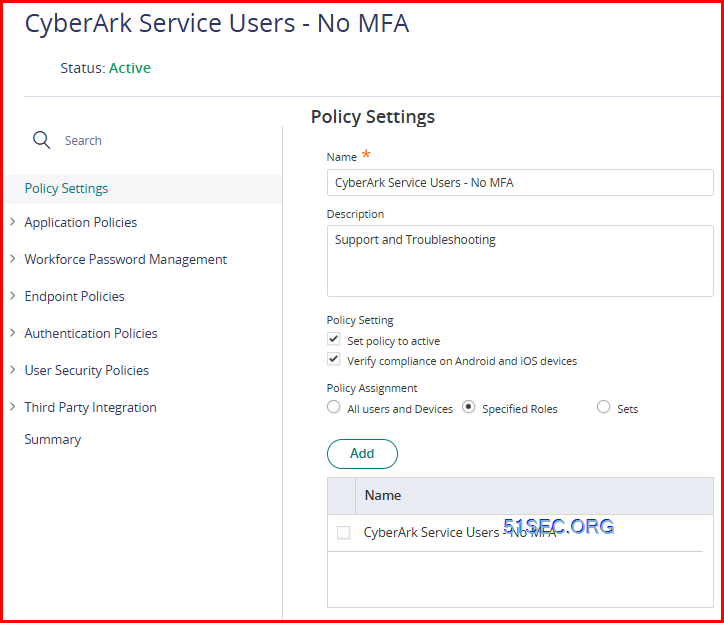

No MFA

Connector Management

Install Connector to a new Connector server

To deploy a new connector, you first generate the installation script and then run it on the connector host machine.

To perform the following steps, your user must be assigned to the System Administrator role in Identity Administration.

Sign in to the CyberArk Identity Security Platform Shared Services using the link provided in the CyberArk email.
Click the service picker, and select Connector Management.
On the Connectors page, click Add a connector.
In the Add connector wizard > Define installation details tab define the following details for the Management Agent in the host machine:

Click Next.
In the Copy installation script tab, review the connector settings you defined:

Click Copy script to later copy it to the connector host machine.

The script is available for 5 minutes.

Optionally:

Click Renew to renew the script availability for an additional 5 minutes

Click Preview to view the script format

Click Close.

https://

docs.cyberark.com

/ConnectorManagement/Latest/en/Content/Setup/CM_AddConnector.htm?tocpath=Setup%7C_____2#Addaconnector1

Upgrade CPM and Other Components

At this moment, Jan 2024, it is still not able to upgrade PSM from Connector Management page.

Connector shows components details

Upgrade Components page

You will need to get your [email protected] credential to process. Reset the installeruser password first since it will be changed in 24 hours after reset.
